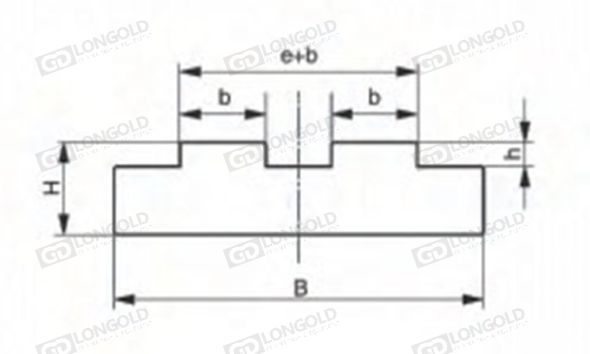

導軌型號

配用鏈條型號

B

H

b

h

e+b

PDF圖紙

DXF圖紙

mm

mm

mm

mm

mm

LD06B-2-S-T

06B-2

25

10

5.3

1.5

15.6

請咨詢

請咨詢

LD08B-2-S-T-F1

08B-2

35

10

7.2

2.2

21.2

LD08B-2-S-T-F2

08B-2

35

15

7.2

2.2

21.2

LD08B-2-S-T-F3

08B-2

35

20

7.2

2.2

21.2

LD08B-2-S-T-F4

08B-2

35

30

7.2

2.2

21.2

LD10B-2-S-T

10B-2

40

10

9.0

2.6

25.6

LD12B-2-S-T-F2

12B-2

45

15

10.9

2.4

30.4

LD12B-2-S-T-F1

12B-2

45

10

10.9

2.4

30.4

LD16B-2-S-T

16B-2

47.8

15

15.8

3.5

47.8

LD20B-2-S-T

20B-2

54.7

15

18.2

4.2

54.7

LD24B-2-S-T

24B-2

72

20

23.6

5.5

72.0

LD28B-2-S-T

28B-2

88.4

25

28.8

6.8

88.4

LD32B-2-S-T

32B-2

87.4

30

28.8

7.7

87.4

LD35-2-S-T

35-2

25

10

4.4

2.3

14.5

LD40-2-S-T

40-2

35

10

7.4

2.4

21.8

LD50-2-S-T

50-2

40

10

8.8

2.8

26.9

LD60-2-S-T

60-2

40

15

11.8

3.5

34.6

LD80-2-S-T

80-2

44

15

14.8

4.7

44.0

LD100-2-S-T

100-2

53

20

17.8

6.4

53.0

LD120-2-S-T

120-2

69

20

23.7

8.0

69.0

LD140-2-S-T

140-2

72

20

23.7

9.7

72.0

LD160-2-S-T

160-2

88

25

29.7

11.3

88.0
