隆德鏈號

節(jié)距

滾子直徑

內節(jié)內寬

銷軸直徑

銷軸長度

內鏈板高度

鏈板厚度

單位

鏈節(jié)數

斷破載荷

參考重量

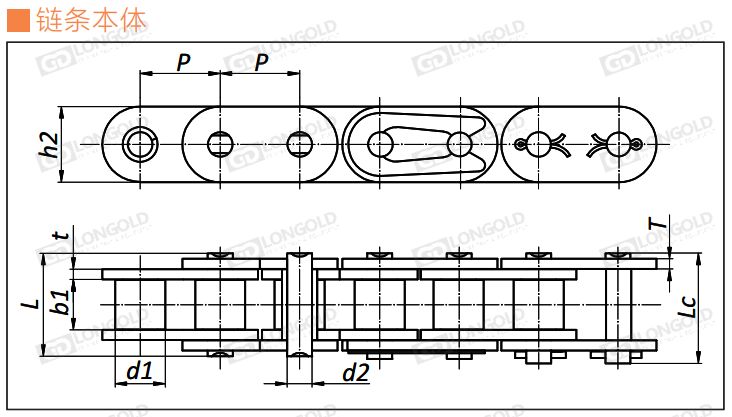

P

d1max

b1min

d2max

Lmax

Lcmax

h2max

t/Tmax

Q

q

mm

mm

mm

mm

mm

mm

mm

mm

kN/lbf

kg/m

LDC06B-SS-1

9.525

6.35

5.72

3.28

13.15

14.10

8.20

1.30

320

請咨詢

請咨詢

LDC08B-SS-1

12.70

8.51

7.75

4.45

16.70

18.20

11.80

1.60

240

LDC10B-SS-1

15.875

10.16

9.65

5.08

19.50

20.90

14.70

1.70

192

LDC12B-SS-1

19.05

12.07

11.68

5.72

22.50

24.20

16.00

1.85

160

LDC16B-SS-1

25.40

15.88

17.02

8.28

36.10

39.10

21.00

4.15/3.10

120

LDC20B-SS-1

31.75

19.05

19.56

10.19

41.30

45.00

26.40

4.50/3.50

96

LDC24B-SS-1

38.10

25.40

25.4

14.63

53.40

57.80

33.20

6.00/4.80

80

LDC28B-SS-1

44.45

27.94

30.99

15.90

65.10

69.50

36.70

7.50/6.00

68

LDC32B-SS-1

50.80

29.21

30.99

17.81

66.00

71.00

42.00

7.00/6.00

60
