齒數(shù)

鏈輪型號

錐套型號

外圓直徑

節(jié)距圓直徑

最大孔徑

輪轂

參考重量

PDF圖紙

DXF圖紙

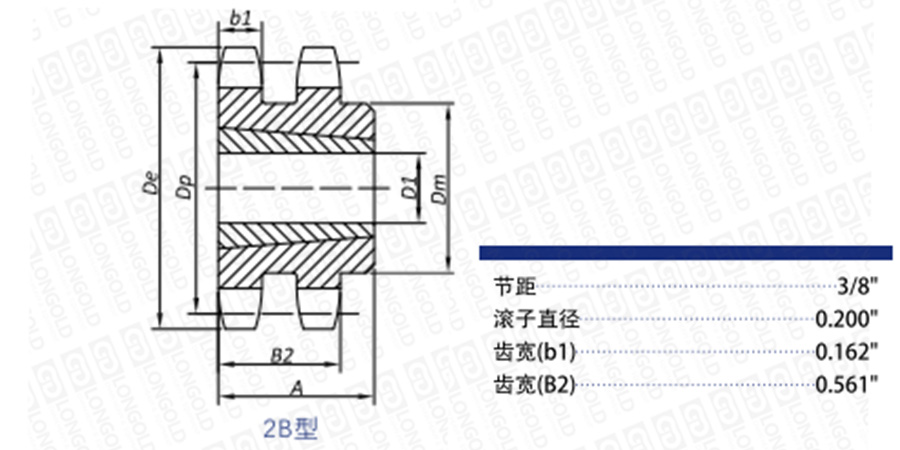

De

Dp

D1

長度A

直徑Dm

鏈輪

錐套

inch

inch

inch

inch

inch

lbs

lbs

19

LD35-2B19TQ-TB

1008

2.472

2.278

1

7/8

1 5/6

0.60

0.30

請咨詢

請咨詢

20

LD35-2B20TQ-TB

1008

2.593

2.397

1

7/8

1 8/9

0.80

0.30

21

LD35-2B21TQ-TB

1008

2.713

2.516

1

7/8

2  1/16

1.40

0.30

22

LD35-2B22TQ-TB

1008

2.883

2.635

1

7/8

2  3/16

1.70

0.30

24

LD35-2B24TQ-TB

1210

3.074

2.873

1 1/4

1

2  7/16

1.80

0.60

26

LD35-2B26T-TB

1210

3.341

3.111

1 1/4

1

2 5/8

2.00

0.60

30

LD35-2B30T-TB

1610

3.793

3.588

1 5/8

1

3 1/8

1.80

0.90

32

LD35-2B32T-TB

1610

4.032

3.826

1 5/8

1

3 1/4

2.00

0.90

35

LD35-2B35T-TB

1610

4.392

4.183

1 5/8

1

3 1/4

2.30

0.90

40

LD35-2B40T-TB

1610

4.990

4.780

1 5/8

1

3 1/4

2.90

0.90

45

LD35-2B45T-TB

1610

5.588

5.376

1 5/8

1

3 1/4

3.20

0.90

48

LD35-2B48T-TB

1610

5.946

5.734

1 5/8

1

3 5/8

3.50

0.90

54

LD35-2B54T-TB

1610

6.663

6.449

1 5/8

1

3 5/8

3.90

0.90

60

LD35-2B60T-TB

1610

7.380

7.165

1 5/8

1

3 5/8

4.90

0.90

70

LD35-2B70T-TB

1610

8.575

8.358

1 5/8

1

3 5/8

6.30

0.90

80

LD35-2B80T-TB

1610

9.770

9.552

1 5/8

1

3 5/8

7.90

0.90

96

LD35-2B96T-TB

1610

11.680

11.461

1 5/8

1

3 5/8

9.90

0.90

112

LD35-2B112T-TB

1610

13.590

13.371

1 5/8

1

3 5/8

10.90

0.90
