同步帶輪型號

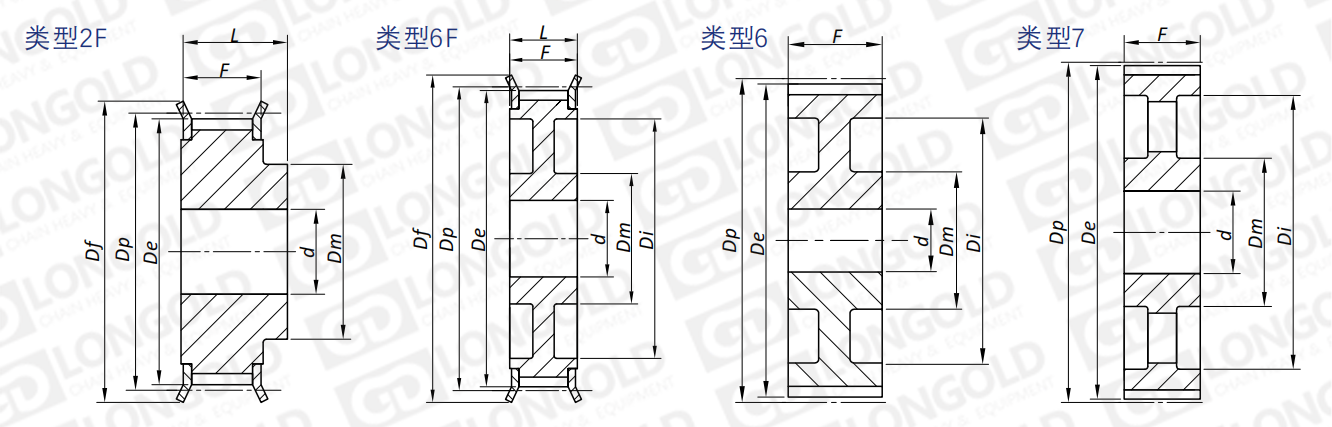

類型

齒數(shù)

外圓直徑

節(jié)距圓直徑

擋圈直徑

輪轂直徑

Di

齒寬

總寬

孔徑

Dp

De

Df

Dm

F

L

d

Z

inch

inch

inch

inch

inch

inch

inch

inch

8M5022T-F

2F

22

2.206

2.152

2 3/8

1 11/16

-

2 3/8

2 3/4

1/2

8M5024T-F

2F

24

2.406

2.352

2 5/8

1 7/8

-

2 3/8

2 3/4

1/2

8M5026T-F

2F

26

2.607

2.553

2 3/4

2

-

2 3/8

2 3/4

1/2

8M5028T-F

2F

28

2.807

2.759

2 15/16

2

-

2 3/8

2 3/4

5/8

8M5030T-F

2F

30

3.008

2.958

3  9/32

2  3/16

-

2 3/8

2 3/4

5/8

8M5032T-F

2F

32

3.208

3.154

3  7/16

2 3/8

-

2 3/8

2 3/4

5/8

8M5034T-F

2F

34

3.409

3.355

3  9/16

2 3/4

-

2 3/8

2 3/4

5/8

8M5036T-F

2F

36

3.609

3.555

3 13/16

2 3/4

-

2 3/8

2 3/4

5/8

8M5038T-F

2F

38

3.810

3.756

4

2 15/16

-

2 3/8

2 3/4

5/8

8M5040T-F

2F

40

4.010

3.956

4 13/32

2 15/16

-

2 3/8

2 3/4

5/8

8M5044T-F

2F

44

4.411

4.357

4 3/4

2 15/16

-

2 3/8

2 3/4

5/8

8M5048T-F

2F

48

4.812

4.758

5

3  3/16

-

2 3/8

2 3/4

5/8

8M5056T-F

6F

56

5.614

5.560

5 15/16

3  9/16

4 5/8

2 3/8

2 3/8

5/8

8M5064T-F

6F

64

6.416

6.362

6 5/8

4

5 3/8

2 3/8

2 3/8

5/8

8M5072T-F

6F

72

7.218

7.164

7  9/16

4

6  3/16

2 3/8

2 3/8

5/8

8M5080T

7

80

8.020

7.966

-

4  3/8

7

2 3/8

2 3/8

5/8

8M5090T

7

90

9.023

8.969

-

4  3/8

8

2 3/8

2 3/8

5/8

8M50112T

7

112

11.229

11.175

-

4  3/8

10 1/4

2 3/8

2 3/8

5/8

8M50144T

7

144

14.437

14.383

-

4  3/8

13 3/8

2 3/8

2 3/8

3/4

8M50168T

7

168

16.843

16.789

-

4 3/4

15 13/16

2 3/8

2 3/8

3/4

8M50192T

7

192

19.249

19.195

-

5 1/8

18 1/4

2 3/8

2 3/8

3/4
