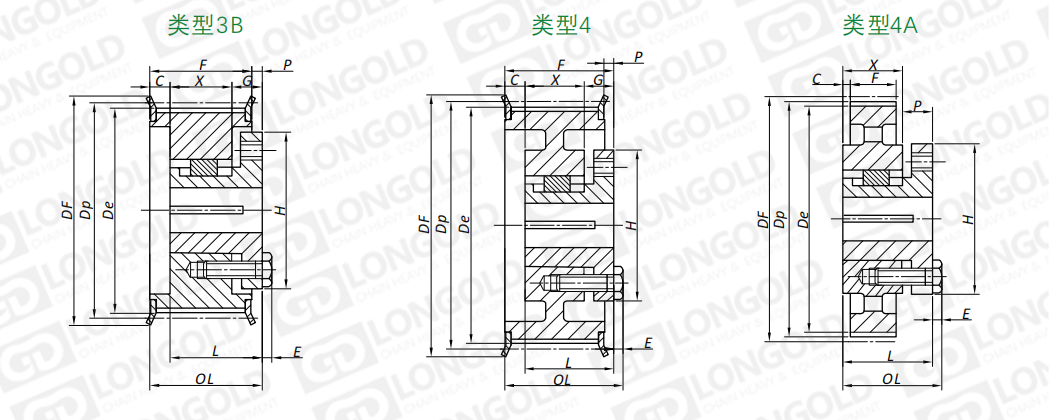

同步帶輪型號

類型

錐套

型號

齒數(shù)

外圓

直徑

節(jié)距圓

直徑

Di

擋圈

直徑

齒寬

OL

L

P

C

H

G

X

E

參考

重量

Dp

De

DF

F

inch

inch

inch

inch

inch

inch

inch

inch

inch

inch

inch

inch

inch

Lbs

XXH30020T-F-R1

3B

R1

20

7.958

7.838

6

8 11/16

3 11/16

3 31/32

2 7/8

-

13/16

5 3/8

7/8

2

9/32

23.4

XXH30022T-F-R1

3B

R1

22

8.753

8.633

6 3/4

9 1/2

3 11/16

3 31/32

2 7/8

-

13/16

5 3/8

7/8

2

9/32

29.6

XXH30024T-F-R1

4

R1

24

9.549

9.429

7 1/2

10  5/16

3 11/16

3 31/32

2 7/8

-

13/16

5 3/8

7/8

2

9/32

30.8

XXH30026T-F-R1

4

R1

26

10.345

10.225

8 1/4

11  1/16

3 11/16

3 31/32

2 7/8

-

13/16

5 3/8

7/8

2

9/32

35

XXH30030T-F-R1

4

R1

30

11.937

11.817

9 7/8

12 11/16

3 11/16

3 31/32

2 7/8

-

13/16

5 3/8

7/8

2

9/32

45.6

XXH30034T-F-R1

4

R1

34

13.528

13.408

11 1/4

14 1/4

3 11/16

3 31/32

2 7/8

-

13/16

5 3/8

7/8

2

9/32

49.5

XXH30040T-F-R1

4

R1

40

15.915

15.795

13 5/8

16 5/8

3 11/16

3 31/32

2 7/8

-

13/16

5 3/8

7/8

2

9/32

59.5

XXH30048T-S1

4A

S1

48

19.099

18.979

16 13/16

-

3 11/16

4 15/16

4 3/8

7/8

3/16

6 3/8

1  1/16

3  5/16

3/8

106

XXH30060T-S1

4A

S1

60

23.873

23.753

21 5/8

-

3 11/16

4 15/16

4 3/8

7/8

3/16

6 3/8

1  1/16

3  5/16

3/8

120

XXH30072T-S1

4A

S1

72

28.648

28.528

26 3/8

-

3 11/16

4 15/16

4 3/8

7/8

3/16

6 3/8

1  1/16

3  5/16

3/8

138

XXH30090T-S1

4A

S1

90

35.81

35.69

33 1/2

-

3 11/16

4 15/16

4 3/8

7/8

3/16

6 3/8

1  1/16

3  5/16

3/8

186
